In Screed Radiant Floor Heating Cables

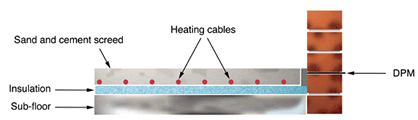

cross section of a floor fitted with inscreed cable
Inscreed cabl

The system is a primary heat source & can be used under almost any floor covering.

The output is varied by the cable spacing & usually ranges from 120-150w per sqm in a new build or extension, up to 200w per sqm in a conservatory, or where an 'off-peak' solution is required.

This cable is also ideal for use directly below thick stone & flagstone type flooring.

In-screed cables are a low cost solution & are designed to be used where regular constant heat is required. Where irregular heating is needed (e.g. conservatory for ad-hoc use) we recommend the under-tile system with insulation boards (or an under wood/laminate carbon film system)


  • High quality cable design.

  • Robust cable for Construction sites.

  • Low cost.

  • Ideal for permanent heating of screed floors.

  • Fixed direct to steel reinforcing or to your floor Insulation.

  • Also suitable for de-icing driveways.

  • Switched Contactor/Relay available on request, when covering large areas that require above 16amp.

  • Call 0800 881 8097 for advice.
